MUNICH • GERMANY

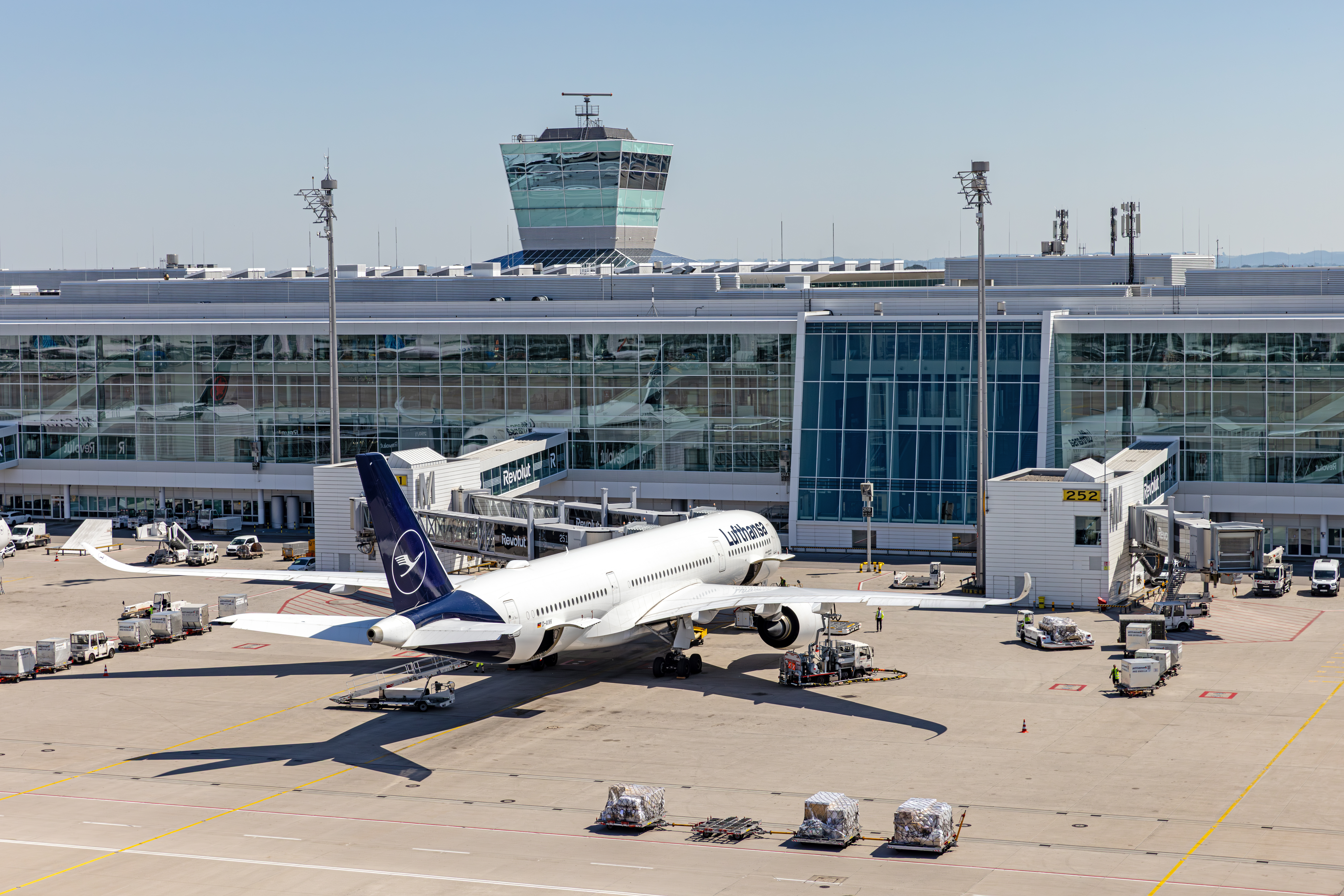

Munich Airport Operational Briefing
Runway & Field Specifications
| Field Elevation | 1,487 FT |
| Transition Altitude (TA) | 5,000 FT |
| Initial Climb Clearance | FL070 |
| RWY 08L/26R Dimensions | 4,000m × 60m (CAT III) |
| RWY 08R/26L Dimensions | 4,000m × 60m (CAT III) |
Communication Frequencies
| ATIS | 123.130 |
| Delivery | 121.730 |
| Apron 1, 2 & 3 | 1 = 121.780 / 2 = 121.710 / 3 = 121.930 |
| Ground (North / South) | 121.980 (N) / 121.830 (S) |
| Tower (North / South) | 118.705 (N) / 120.505 (S) |
| Departure | 123.905 (N) / 127.955 (S) |
| Feeder | 128.030 (N) / 120.780 (S) |
| Arrival | 118.830 (N) / 132.305 (S) |
Threats: Independent parallel runway operations (08L/26R & 08R/26L) - Wake turbulence to be expected on final approach - high terrain rising rapidly south of airfield!
01
Taxi & Stand Restrictions
| TAXIWAY / AREA | LIMITATION / RESTRICTION |
|---|
| North / South Apron | Strict split operations; follow designated Ground/Apron frequencies |
| Taxiway Bridges (E & W) | Max ICAO Code Letter F on centerlines |
| Pushback Rules | Only push onto W2 or E2, NEVER centyer 2 as this blcoks the whole apron |
02
Departure & A-CDM
A-CDM Operations
EDDM operates under strict A-CDM procedures. Confirm/update TOBT via VATSIM portal:
cdm.vatsimspain.es
IFR Clearance Protocol
| TIMING |
Request 15 mins prior to TOBT earliest |
| FREQUENCY |
Munich Delivery (121.730) or DCL |
03
Arrival
| APPROACH TYPE | REQUIREMENTS & PROFILE |
|---|
| ILS RWY 08L / 26R | North parallel approach. Glidepath 3.0°. Simultaneous parallel operations active. |
| ILS RWY 08R / 26L | South parallel approach. Glidepath 3.0°. Simultaneous parallel operations active. |
- Parallel Operations: Do not overshoot localizer centerline due to active parallel approaches.
04
LVP & Night Restrictions
Low Visibility Procedures (LVP)
ATIS: "LVP IN OPERATION"
- LVP activated when RVR ≤ 550m or Ceiling ≤ 200ft.
| TIME WINDOW (LT) |
NIGHT RESTRICTIONS & OPERATIONAL BAN |
| 00:00 – 05:00 LT |
NIGHT CURFEW Strict night ban. Quota system applies from 22:00 – 06:00 LT. |
